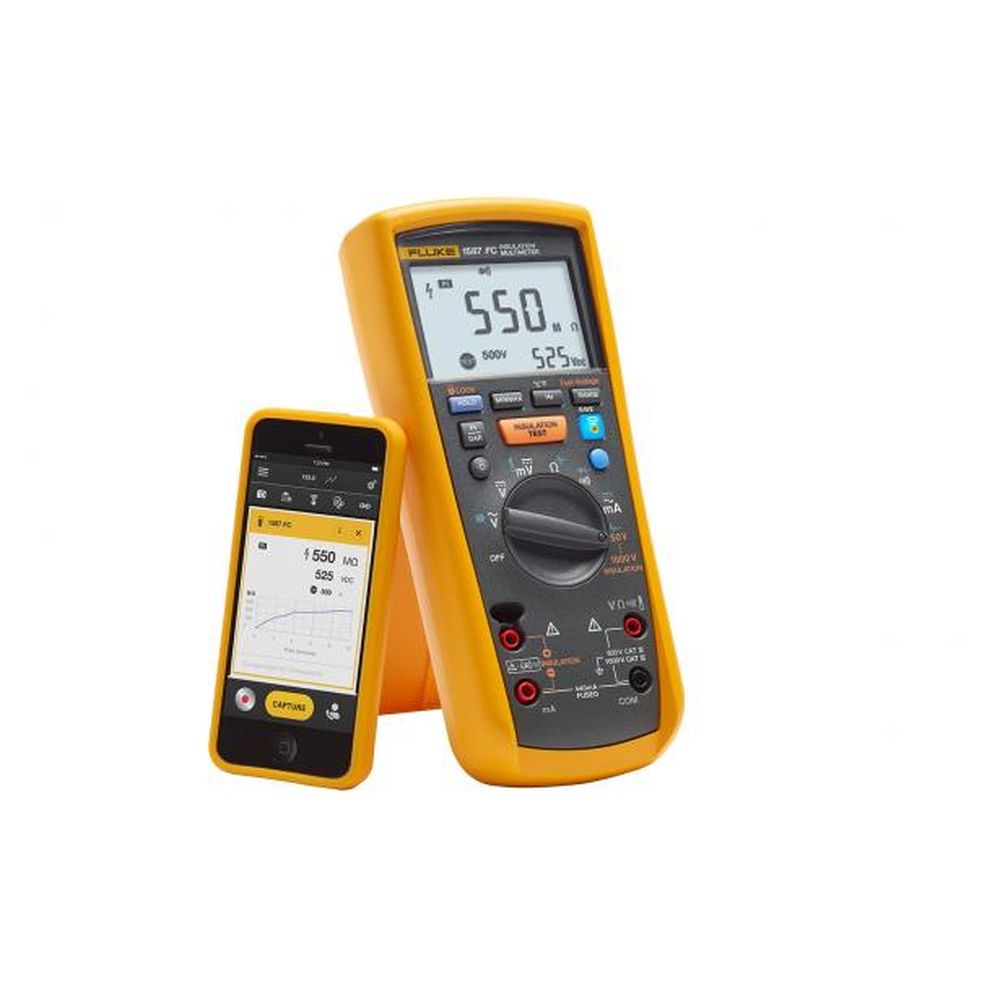

Fluke1587 FC 絶縁マルチメーター
主な機能
- TrendIt™ グラフによるPI/DAR 測定
- Fluke Connect 測定アプリによるメモリー保存
- Fluke Connect 測定アプリによる温度補正
- 正確なモーター・ドライブ測定のための VFD ローパス・フィルター
- 絶縁試験電圧 50 V、100 V、250 V、500 V、1000 V
- 絶縁試験: 0.01 MΩ ~ 2.0 GΩ
- 容量性電圧の自動放電
- 絶縁試験のスムーズな読み取り
- 周波数
- 静電容量
- ダイオード・テスト
- 温度
- 最小値/最大値
- AC/DC 電圧
- DC 電圧 mV
- AC/DC ミリアンペア
- 抵抗: 0.1 Ω ~ 50 MΩ
- 導通
- 3 年間の保証
- リモート・プローブ、テスト・リード、ワニ口クリップ
- Kタイプ熱電対
- 丈夫なユーティリティー・ハード・ケース
- 自動電源オフ
高性能 2-in-1 絶縁 DMM
Fluke 1587 FC 絶縁マルチメーターは、充実した機能を備えた、True-rms デジタル・マルチメーター機能を持つデジタル絶縁テスターです。単一のコンパクトな携帯型のユニットから構成され、トラブルシューティングと予防保守の両面で、さまざまな用途に使用可能な優れた汎用性があります。
Fluke 1587 FC 絶縁マルチメーターでは、Fluke Connect® 測定アプリを使用することにより、次の 4 つの強力な診断機能を追加できます。
- TrendIt™ グラフを使用した PI/DAR 時間比試験により、湿度や汚れによる絶縁の問題を効率的に特定
- Fluke Connect によるメモリー保存機能により、結果を書き留めておく必要がないため、ミスが少なくなり、データを保存して履歴を追跡することも可能
- アプリによる温度補正により、正確なベースラインと関連履歴比較を確立
- Fluke Connect® Assets の履歴追跡およびアセット傾向分析により、経年劣化を特定し、現場でリアルタイムに判断を下すことが可能
製品の特長
- PI/DAR 時間比試験
- 30 V を超える電圧が検出された場合ライブ・サーキット検出で絶縁テストを中止し、ユーザー保護を強化
- 正確なモーター・ドライブ測定のための VFD ローパス・フィルター
- 容量性電圧の自動放電によるユーザーの保護
- 絶縁試験 (1587 FC: 0.01 MΩ ~ 2 GΩ)
- 各種用途に対応する絶縁テスト電圧 (1587 FC: 50 V、100 V、250 V、500 V、1000 V)
- AC/DC 電圧、DC (ミリボルト)、 AC/DC (ミリアンペア)、抵抗 (Ω)、導通
- 静電容量、ダイオード・テスト、温度、最小/最大、周波数 (Hz)
- バッテリーを節約する自動電源オフ
- CAT III 1000 V、CAT IV 600 V の測定カテゴリー
- バックライト付き大型ディスプレイ
- 堅牢なユーティリティ・ハード・ケースにより、作業に必要なすべての機能を常に手元に
- 付属アクセサリー: リモート・プローブ、テスト・リード、ワニ口クリップ、K 型熱電対
- オプションで Fluke TPAK 磁石式メーター吊り下げキットを使用できるため、ハンド・フリー操作にも便利
- 標準保証期間 3 年、購入後 45 日以内に製品登録することにより、5 年間に延長可能
仕様
クリック・タップで開きます
| AC voltage measurement |
| Range |
Resolution |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
| 600.0 mV |
0.1 mV |
±(1% + 3) |
±(2% + 3) |
| 6.000 V |
0.001 V |
±(1% + 3) |
±(2% + 3) |
| 60.00 V |
0.01 V |
±(1% + 3) |
±(2% + 3) |
| 600.0 V |
0.1 V |
±(1% + 3) |
±(2% + 3)¹ |
| 1000 V |
1 V |
±(2% + 3) |
±(2% + 3)¹ |
| ¹ 1 kHz bandwidth |
| Low-Pass Filter Voltage |
| Range |
Resolution |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
| 600.0 mV |
0.1 mV |
±(1% + 3) |
+(2% + 3), -(6% - 3) |
| 6.000 V |
0.001 V |
±(1% + 3) |
+(2% + 3), -(6% - 3) |
| 60.00 V |
0.01 V |
±(1% + 3) |
+(2% + 3), -(6% - 3) |
| 600.0 V |
0.1 V |
±(1% + 3) |
+(2% + 3), -(6% - 3) |
| 1000 V |
1 V |
±(2% + 3) |
+(2% + 3), -(6% - 3) |
| DC Voltage Measurement |
| Range |
Resolution |
Accuracy ±(% of Rdg + Counts) |
| 6.000 V dc |
0.001 V |
±(0.09% + 2) |
| 60.00 V dc |
0.01 V |
±(0.09% + 2) |
| 600.0 V dc |
0.1 V |
±(0.09% + 2) |
| 1000 V dc |
1 V |
±(0.09% + 2) |
| Input impedance |
10 MΩ (nominal), <100 pF |
| Normal mode rejection ratio |
>60 dB @ 50 Hz or 60 Hz |
| Common mode rejection ratio |
>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance) |
| Accuracies apply to ± 100% of range |
| DC Millivolts Measurement |
| Range |
Resolution |
Accuracy ±(% of Rdg + Counts) |
| 600.0 mVdc |
0.1 mV |
±(0.1% + 1) |
| DC and AC Current Measurement |
| Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
Burden voltage (Typical) |
| AC 45 Hz to 1000 Hz |
400 mA |
0.1 mA |
±(1.5% + 2)¹ |
2 mV/mA |
| 60 mA |
0.01 mA |
±(1.5% + 2)¹ |
2 mV/mA |
| DC |
400 mA |
0.1 mA |
±(0.2% + 2) |
2 mV/mA |
| 60 mA |
0.01 mA |
±(0.2% + 2) |
2 mV/mA |
| Overload |
600 mA for 2 minutes maximum |
| Fuse protection for mA input |
0.44 mA, 1000 V, IR 10 kA |
| AC conversion |
Inputs are ac-coupled and calibrated to the rms value of sine wave input.Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor ≤1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3. |
| ¹ 1 kHz bandwidth |
| Ohms Measurement |
| Range |
Resolution |
Accuracy +(% of Rdg+Counts)¹ |
| 600.0 Ω |
0.1 Ω |
±(0.9% + 2) |
| 6.000 kΩ |
0.001 kΩ |
±(0.9% + 2) |
| 60.00 kΩ |
0.01 kΩ |
±(0.9% + 2) |
| 600.0 kΩ |
0.1 KΩ |
±(0.9% + 2) |
| 6.000 MΩ |
0.001 MΩ |
±(0.9% + 2) |
| 50.0 MΩ ² |
0.01 MΩ |
±(1.5% + 3) |
| Overload protection |
1000 V rms or dc |
| Open circuit test voltage |
<8.0 V dc |
| Short circuit current |
<1.1 mA |
¹ Accuracies apply from 0% to 100% of range
² Up to 80% relative humidity |
| Diode Test |
| Diode test indication |
Display voltage drop: 0.6 V at1.0 mA nominal test current: |
| Accuracy |
±(2% + 3) |
| Continuity Test |
| Continuity indication |
Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω |
| Open circuit voltage |
<8.0 V |
| Short circuit current |
1.0 mA typical |
| Overload protection |
1000 V rms |
| Response time |
>1 m sec |
| Frequency Measurement |
| Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
| 99.99 Hz |
0.01 Hz |
±(0.1% + 1) |
| 999.9 Hz |
0.1 Hz |
±(0.1% + 1) |
| 9.999 kHz |
0.001 kHz |
±(0.1% + 1) |
| 99.99 kHz |
0.01 kHz |
±(0.1% + 1) |
| Frequency Counter Sensitivity |
| 600.0 mV ac |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
100.0 mV |
| V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
150.0 mV |
| DC Trigger Levels¹ to 20 kHz² |
NA |
| 6.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
1.0 V |
| V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
1.5 V |
| DC Trigger Levels¹ to 20 kHz² |
-400.0 mV and 2.5 V |
| 60.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
10.0 V |
| V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
36.0 V |
| DC Trigger Levels¹ to 20 kHz² |
1.2 V and 4.0 V |
| 600.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
100.0 V |
| V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
- |
| DC Trigger Levels¹ to 20 kHz² |
12.0 V and 40.0 V |
| 1000.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
300.0 V |
| V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
- |
| DC Trigger Levels¹ to 20 kHz² |
12.0 V and 40.0 V |
¹ Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy
² Usable to 100 kHz with full scale input |
| Capacitance |
| Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
| 1000 nF |
1 nF |
±(1.2% + 2) |
| 10.00 μF |
0.01 μF |
±(1.2% + 2) |
| 100.0 μF |
0.1 μF |
±(1.2% ±90 counts) |
| 9999 μF |
1 μF |
±(1.2% ±90 counts) |
| Temperature Measurement |
| Range |
Resolution |
Accuracy ±(% of Rdg+Counts)¹ |
| -40 ° C to 537 ° C |
0.1 ℃ |
±(1% + 10 counts) |
| ¹ Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument |
| Insulation Specifications |
| Measurement range |
0.01 MΩ to 2 GΩ |
| Test voltages |
50, 100, 250, 500, 1000 V |
| Test voltage accuracy |
+20%, -0% |
| Short-circuit test current |
1 mA nominal |
| Auto discharge |
Discharge time <0.5 second for C = 1 μF or less |
| Live circuit detection |
Inhibit test if terminal voltage > 30 V prior to initialization of test |
| Maximum capacitive load |
Operable with up to 1 μF load |
| Output Voltage |
| 50 V (0% to +20%) |
Display range |
0.01 to 6.00 MΩ |
| Resolution |
0.01 MΩ |
| Test current |
1 mA @ 50 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
| Display range |
6.0 to 50.0 MΩ |
| Resolution |
0.1 MΩ |
| Test current |
1 mA @ 50 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
| 100 V (0% to +20%) |
Display range |
0.01 to 6.00 MΩ |
| Resolution |
0.01 MΩ |
| Test current |
1 mA @ 100 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
| Display range |
6.0 to 60.0 MΩ |
| Resolution |
0.1 MΩ |
| Test current |
1 mA @ 100 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
| Display range |
60 to 100 MΩ |
| Resolution |
1 MΩ |
| Test current |
1 mA @ 100 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
| 250 V (0% to +20%) |
Display range |
0.1 to 60.0 MΩ |
| Resolution |
0.1 MΩ |
| Test current |
1 mA @ 250 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
| Display range |
60 to 250 MΩ |
| Resolution |
1 MΩ |
| Test current |
1 mA @ 250 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
| 500 V (0% to +20%) |
Display range |
0.1 to 60.0 MΩ |
| Resolution |
0.1 MΩ |
| Test current |
1 mA @ 500 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
| Display range |
60 to 500 MΩ |
| Resolution |
1 MΩ |
| Test current |
1 mA @ 500 kΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
| 1000 V (0% to +20%) |
Display range |
0.1 to 60.0 MΩ |
| Resolution |
0.1 MΩ |
| Test current |
1 mA @ 1 MΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
| Display range |
60 to 600 MΩ |
| Resolution |
1 MΩ |
| Test current |
1 mA @ 1 MΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
| Display range |
0.6 to 2.0 GΩ |
| Resolution |
100 MΩ |
| Test current |
1 mA @ 1 MΩ |
| Resistance accuracy ±(% of Rdg + Counts) |
±(10% + 3 counts) |
| General Specifications |
| Maximum voltage applied to any terminal and common |
1000 V |
| Storage temperature |
-40 ℃ to 60 ℃ |
| Operating temperature |
-20 ℃ to 55 ℃ |
| Temperature coefficient |
0.05 x (specified accuracy) per ℃ for temperatures <18 ℃ or >28 ℃ |
| Relative humidity |
Noncondensing |
| 0% to 95% @ 10 ℃ to 30 ℃ |
| 0% to 75% @ 30 ℃ to 40 ℃ |
| 0% to 40% @ 40 ℃ to 55 ℃ |
| Vibration |
Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument |
| Radio frequency communication |
2.4 GHz ISM Band |
| Radio frequency certification |
FCC: T68-FBLE, IC: 6627A-FBLE |
| Electromagnetic Compatibility |
| International |
IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. |
| Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. |
| Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. The equipment may not meet the immunity requirements of this standard when test leads and/or test probes are connected. |
| Korea (KCC) |
Class A Equipment (Industrial Broadcasting & Communication Equipment) |
Class A: Equipment meets requirements fo
